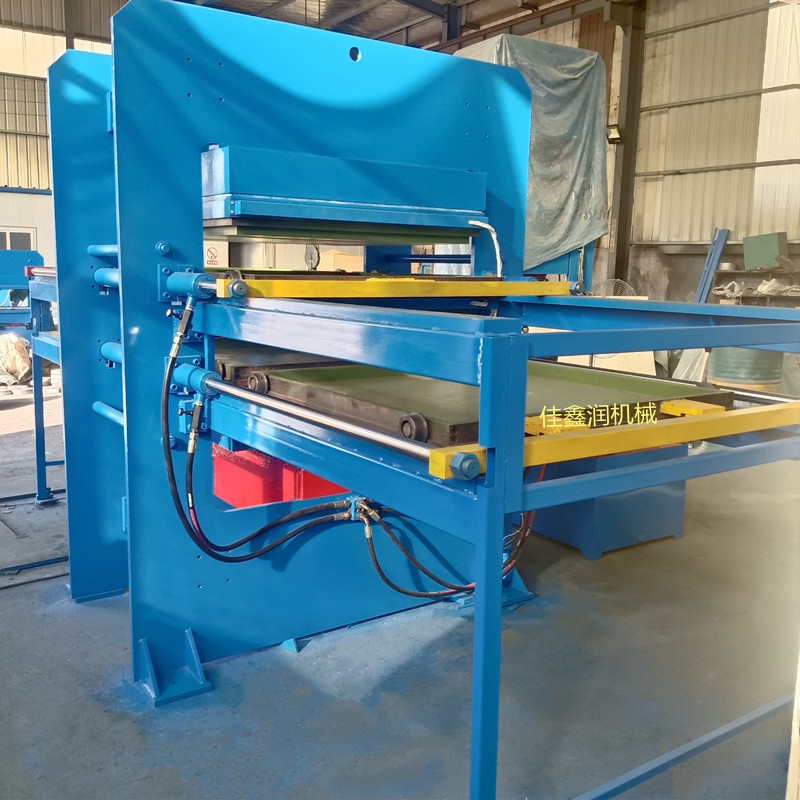

160-ton rubber tile vulcanizing machine

Rubber tile production equipment

This machine is specifically designed for producing rubber powder rubber tiles. Based on the original frame-type 160-ton pressure double-layer tile machine, it incorporates a double-layer bidirectional hydraulic automatic mold push-pull system, further enhancing automation and production efficiency. This system enables automatic mold opening, closing, pushing, and pulling, reducing manual operation, lowering labor intensity, and improving production safety.

DETAIL

II. Equipment Features:Frame-type structure: High rigidity and strong anti-eccentric load capacity ensure pressing precision.

Sufficient pressure: Capable of pressing high-density and high-strength rubber tiles.

Double-layer heating plates: Improve production efficiency and shorten molding cycles.

Dedicated temperature control system: Optimized for rubber material characteristics, with precise temperature control to ensure stable product quality.

Double-layer hydraulic automatic mold push-pull system: Enables automatic mold opening, closing, pushing, and pulling, enhancing automation, production efficiency, and safety while reducing labor intensity.

III. Technical Parameters:

Item	Parameter
Nominal pressure	160 tons
Maximum working pressure	16 MPa
Cylinder diameter	Φ360 mm
Plunger stroke	300 mm
Heating plate size	1100x1100 mm
Number of heating plates	2 layers
Maximum temperature	200℃
Temperature control accuracy	±2℃
Mold push-pull method	Hydraulic automatic push-pull
Push-pull stroke	Customizable based on mold size
Push-pull speed	Adjustable constant speed
Control method	Relay automatic control
