25-Ton Laboratory Flat Plate Vulcanizer
25-Ton Laboratory Flat Plate Vulcanizer
  • 25-Ton Laboratory Flat Plate Vulcanizer
  • 25-Ton Laboratory Flat Plate Vulcanizer

25-Ton Laboratory Flat Plate Vulcanizer

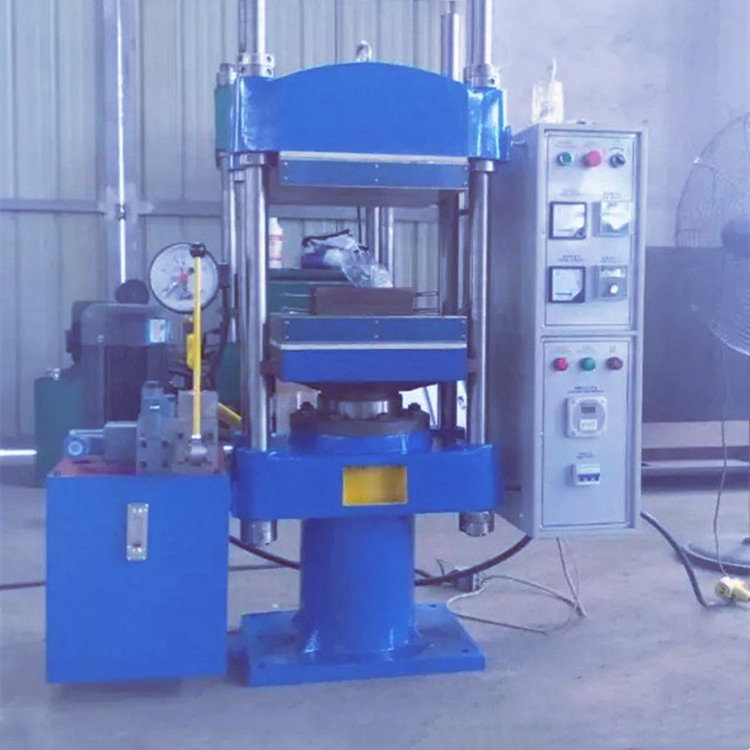

25 ton single layer vulcanizing machine
本系列平板硫化机是各种橡胶制品及非模型制品的主要成型设备,具有结构精致,压力稳定,适用性广,效率高等特点。本机功能完善,结构紧凑,自动补压、自动控温、自动计时,热板表面温度均匀,控温精确直观,保压稳定可靠,操作安全方便等特点,使用本机能保证制品质量,提供生产效率,获得显著的经济效益。 This series of flat - plate vulcanizers are the main molding equipment for various rubber products and non - mold products. They feature delicate structure, stable pressure, wide applicability, and high efficiency. This machine has a complete set of functions and a compact structure. It has the characteristics of automatic pressure compensation, automatic temperature control, and automatic timing. The surface temperature of the hot plate is uniform, the temperature control is accurate and intuitive, the pressure maintenance is stable and reliable, and the operation is safe and convenient. Using this machine can ensure the quality of products, improve production efficiency, and bring significant economic benefits.
价格 16,500 yuan

Technical Parameters of 25-Ton Laboratory Flat Plate Vulcanizer实验室平板硫化机主要技术参数:

Model/型号

XLB - 350×350×1/0.25MN

Clamping force/锁模力

0.25MN

Heating plate size/热板尺寸

350mm×350mm

Unit area pressure/单位面积压力

2.04Mpa

Distance between platens/热板层间距

260mm

Piston diameter/柱塞直径

Φ152(mm)

Piston Stroke/柱塞行程

260(mm)

Heating platens number/热板数量

2

Working layer number/工作层数

Max. Working temperature/最高电加热温度

200℃

Upper and down body material/机座材质

Nodular Cast Iron/球墨铸铁

Max. Working Oil Pressure/最高工作液压力

16.0Mpa

Structure form/结构形式

Four - column Type/四立柱式

Heating mode/加热方式

Electric heating mode/电加热

Heating power/加热功率

4.8Kw

Motor power/电机功率

2.2KW

Power supply/用电标准

AC 380V 50HZ 3PH

Control mode/控制方式

By manual(手动控制)
