Rubber Tile Vulcanizing Machine

Rubber Mat Vulcanizing Machine

This series of flat vulcanizing machines is specifically designed for molding rubber floor tiles. It features a refined structure, stable pressure, wide applicability, and high efficiency. The machine is fully functional, compact in structure, and equipped with automatic pressure replenishment, temperature control, and timing. The surface temperature of the heating plates is uniform, with precise and intuitive temperature control, reliable pressure maintenance, and safe and convenient operation. Using this machine ensures product quality, enhances production efficiency, and delivers significant economic benefits. This machine is a specialized vulcanizing machine for producing rubber floor tiles, with two sets of molds configured per layer for alternating vulcanization, effectively improving production efficiency. It also comes with a manual mold push-pull device for more convenient operation.

DETAIL

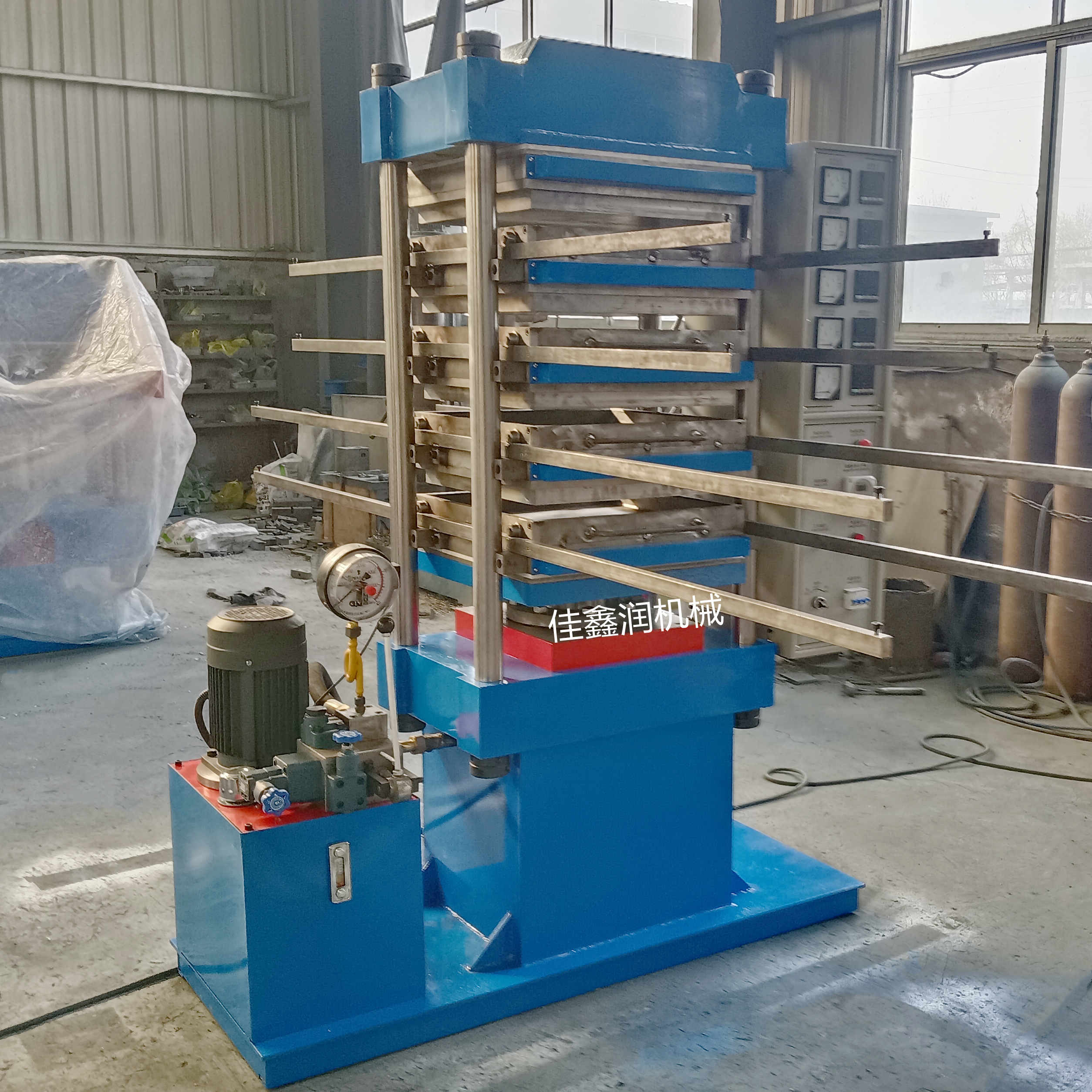

The colored silicone floor tile vulcanizing machine is professionally designed for producing various rubber floor tiles. The main unit features a column-type structure, with heating plates and plungers made of high-quality materials, precision-engineered for wear and corrosion resistance, easy maintenance, stable working pressure, and convenient adjustment.
This series of equipment is specifically designed for the efficient vulcanization and hot press molding of rubber tiles, rubber mats, rubber powder tiles, and rubber flooring.
Featuring an advanced four-column structure, high-quality heating plates, and precision plungers, it ensures stable pressure and uniform temperature, making it suitable for the vulcanization and hot press molding of various rubber products.
The equipment is equipped with automatic temperature control, automatic pressure replenishment, and automatic timing functions, making it easy to operate and highly efficient.
Main Features:
High Efficiency Production: Multi-layer design supports alternating vulcanization with multiple sets of molds, significantly improving production capacity.

Precise Temperature Control: Uniform surface temperature of heating plates with high control accuracy ensures stable product quality.

Stable Pressure: Automatic pressure replenishment function ensures reliable pressure maintenance, adapting to different process requirements.
Energy Saving and Environmental Protection: High-performance oil pump system with low noise and energy consumption.

XLB-550×550×4/0.50MN Floor Tile Vulcanizing Machine Parameters:

Nominal clamping force	0.50MN
Heating plate specification	550*550mm
Heating plate spacing	150mm
Plunger diameter	250mm
Plunger stroke	500mm
Number of working layers	4
Unit area pressure	16.52kg/cm²
Working fluid pressure	16MPa
Motor power	3.0KW, 380V, 50HZ, 3PH
Maximum temperature	Electric heating 200℃
Structure type	Four-column type
Rising and descending speed	Rising 15 mm/s, Descending 20 mm/s
Equipment dimensions	Approximately 2200×900×2250mm
Equipment weight	2100Kg
